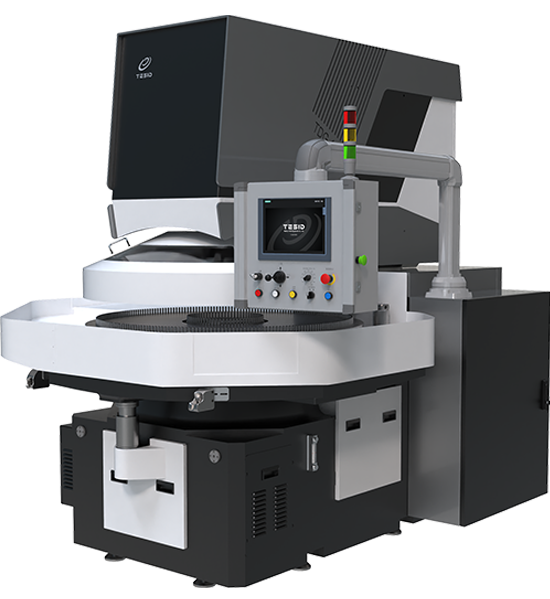

Pro Double Side Fine Grinding \ Lapping Machine:

DPS dynamic pressure balance

DPS dynamic pressure balance system is adopted to ensure each processing pressure is constant.

Constant temperature in Wheel

Equipped with a constant temperature system in the wheel to ensure a constant temperature processing environment and more stable processing accuracy.

High processing efficiency

High pressure and high speed, processing efficiency is two times of traditional model.

On-line dimension control

Ensure the consistency of eachprocessing dimension.

Five-stage processing mode

Adopt five-stage pressure control system. Pressure, speed and steering at each stage can be adjusted at will.

SIEMENS

Adopt Siemens control system with fast response and more powerful functions.

  • Pressurization mode

    DPS
  • Maximum Pressure

    3000kgf
  • Wheel diameter

    1480mm
  • Ring width

    484mm
  • Max. diameter of grinding

    450mm
  • Max. wheel speed

    90rpm
  • Max. inner gear speed

    60rpm
  • Upper Wheel drive power

    22/42.5kw
  • Lower Wheel drive power

    22/42.5kw
  • Inner gear drive power

    11kw
  • Weight

    10500kg

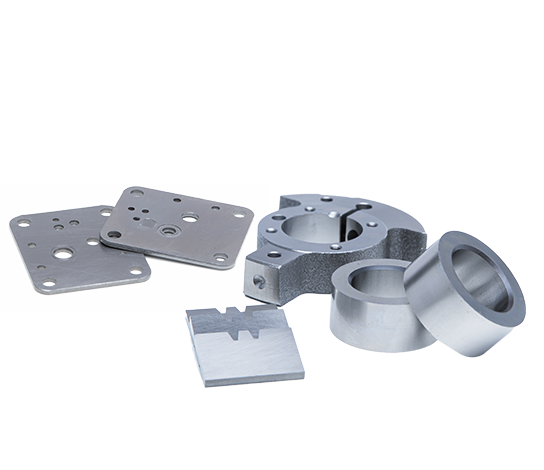

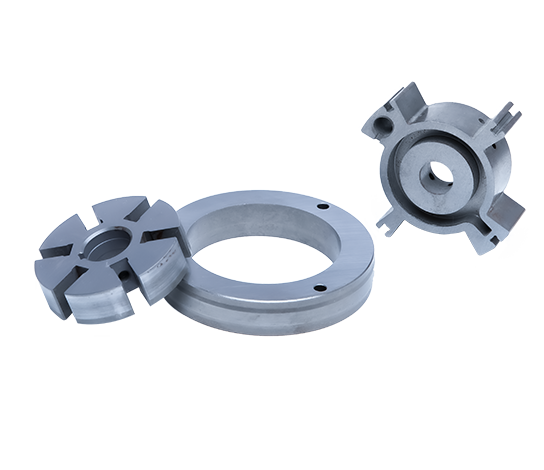

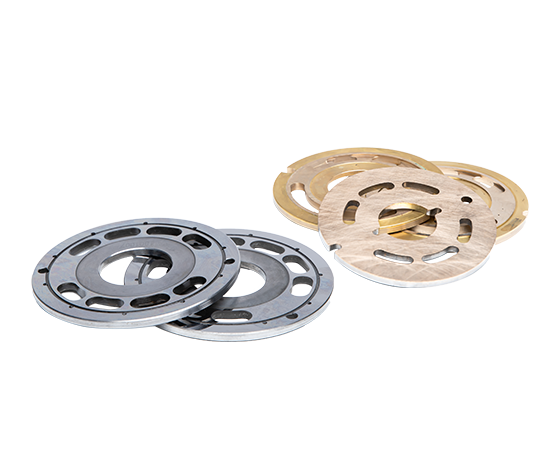

Application area
